Description

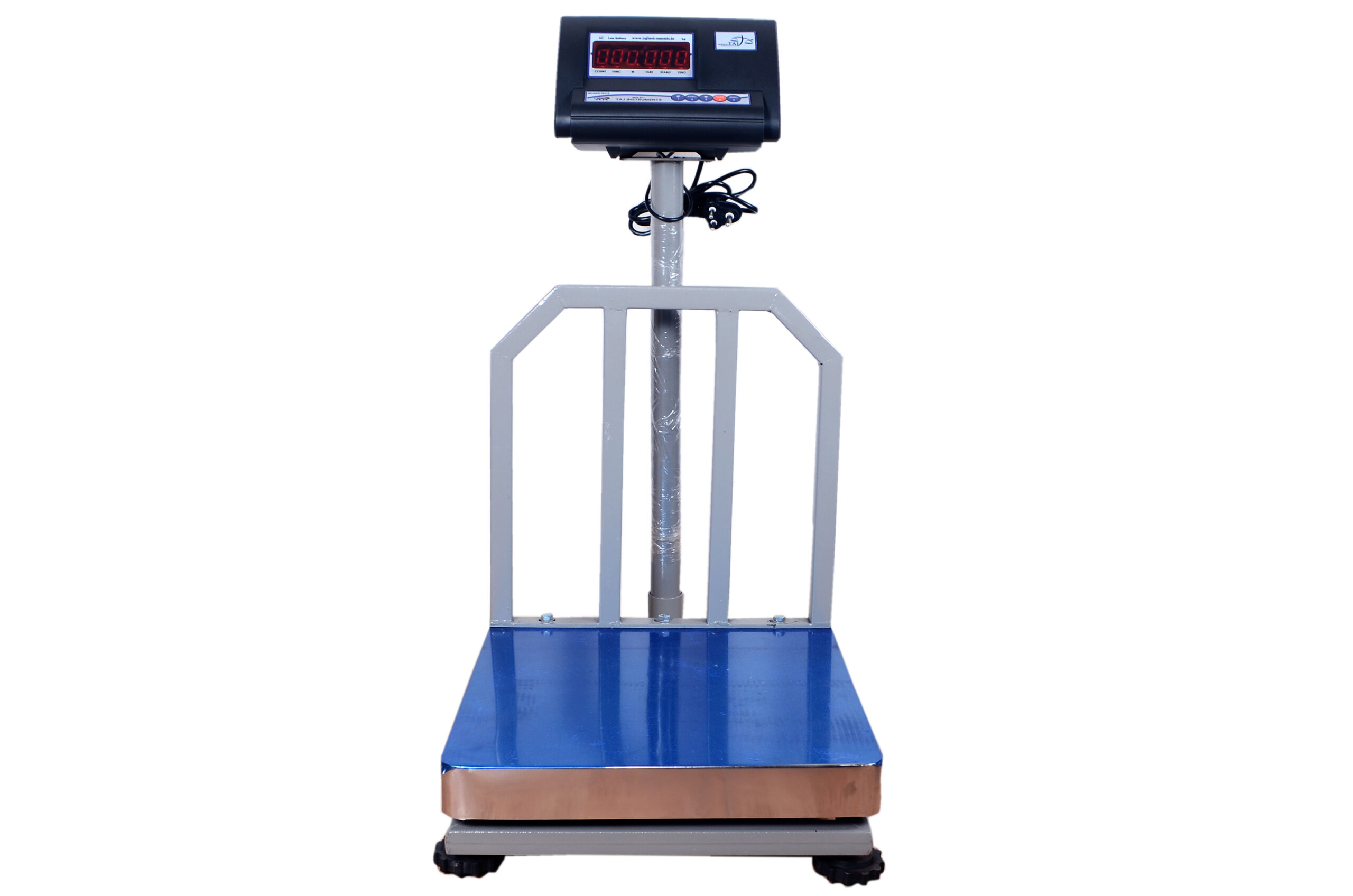

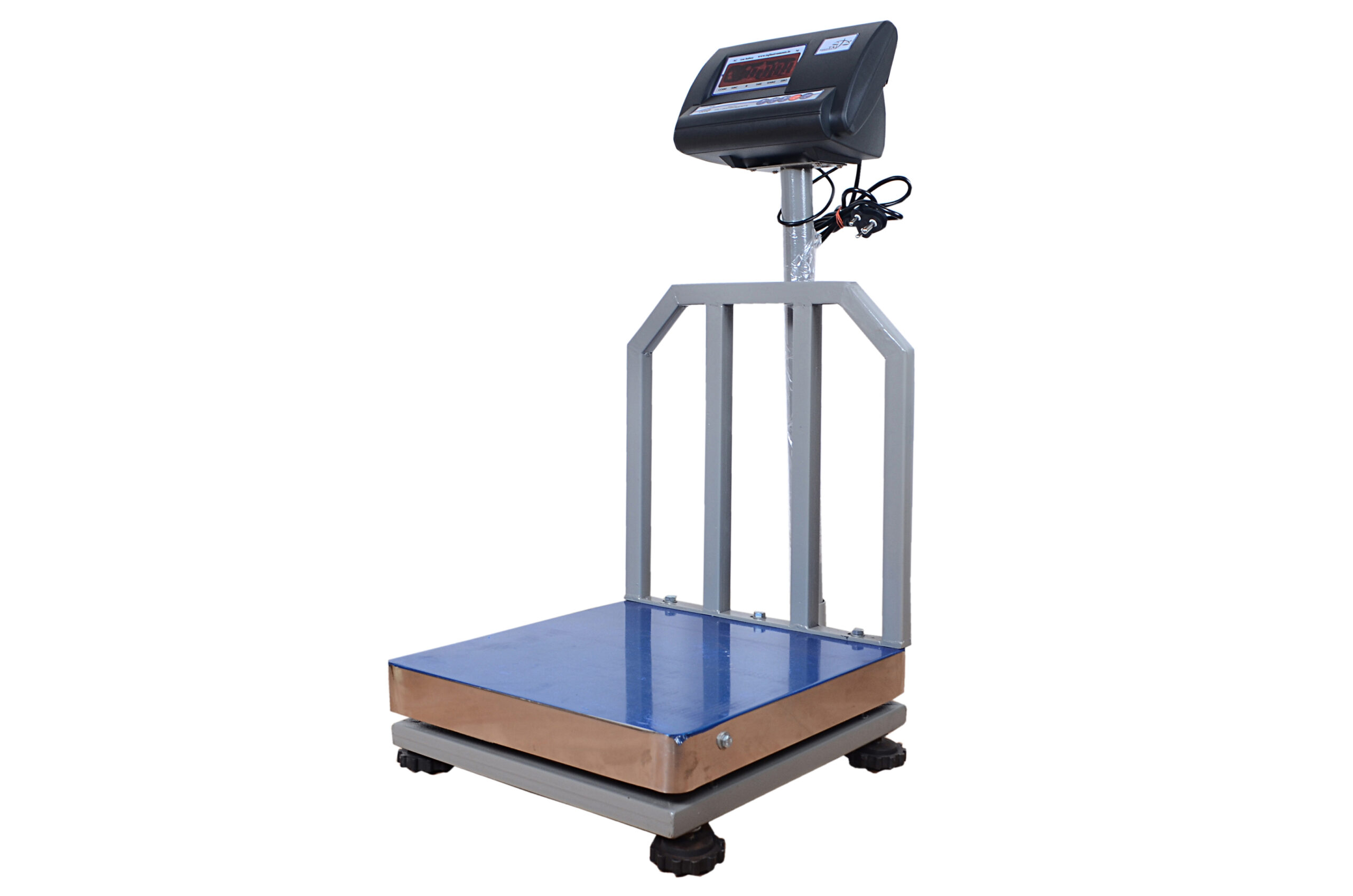

**For Long Life & Better Precise Performance & Weighing Go For Premium Industrial Grade Quality TI-T3A12 High Precision Platform Scale*
**TI-T3A12 High Precision Weighing Scale-adopts fast speed, high precision Σ-Δ A/D conversion technology and special anti-vibration software technology*
**Specifications**
**#Standard Function:*
•High precision A/D conversion with readability 1/30000
•Call and display inner code to replace weight observing and analysis tolerance
•Special software process to strengthen anti-vibration ability
•Able to set up zero-tracking range, zero(auto/manual) range
•Able to set up digital filter intensity, range and stable time
•With counting function (unit weight data save protection in case of power off)
•Selectable backlight mode
•AC/DC power supply, with built-in rechargeable 6V/4AH battery
•Alarm for low battery and auto power off at low battery
•Enhanced EMC design effectively elements EMR disturbance of power supply and outside
•Fourfold cheat proof by both software and hardware
•Good Electric Safety Performance
•Double power supply design to ensure independence and stability of AD conversion
•Optional of RS232 interface with selectable baud rate and communication method
•Optional of scoreboard interface sending by 20mA current loop
**#Technical Parameter:*
•A/D conversion method: Σ-Δ
•Max Verified Counts 3000
•A/D conversion speed: 10 times/sec.
•Max. A/D conversion bits:20
•Input signal range: －10mV～15mV
•Input sensitivity: ≥1μV/e
•Load cell excitation: C5V；I≤150mA
•Max. connection number of load cell: 4 at 350 ohms
•Load cell connection mode: 4 wires
•Verified counts:3000
•Max. external counts:30000
•Max. internal resolution: 300000
•Division:1/2/5/10/20/50 optional
•Display :6 bits LED. 6 status indications
•Display range: -2000～150000(d=10)
•Power supply: AC 187～242V；49～51Hz; DC built-in rechargeable 6V/4AH battery
**Optional:*
*#Scoreboard interface*
-Signal output method: current loop signal
-Baud rate 600 transmission distance: Current loop≤2000 meters serial communication interface
-Standard RS232C serial communication interface, with selectable baud rate by continuous sending method
-Transmission distance: RS232C≤30 meters
