Description

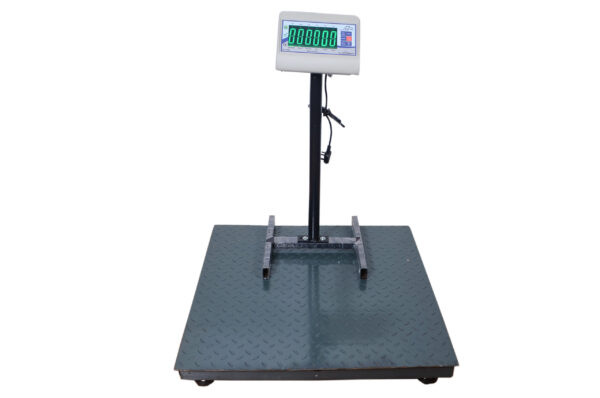

TI-T753E-4 Load Cell-Heavy Industrial Grade Dormant Industrial Platform Scale
————–
#Option: 1-(30″×30″)
————–
*Capacity:500Kg
*Accuracy:100g
*Platter Size:750-750mm(30″ ×30″)
Structure Detail : ISMC 125 2×4 Heavy “C” Channel Structure with 3mm MS Chekar Top(Approx Weight:45-47Kg)
*Load Cell:Shear Beam Type-4pc(each corner 1 load cell)(total 4 load cell) (as shown in photo)
—————
#Option: 2-(40″×40″)
—————
*Capacity:1000Kg
*Accuracy:100g
*Platter Size:1000-1000mm(40″ ×40″)
*Structure Detail: ISMC 125 2×4 Heavy “C” Channel Structure with 3mm MS Chekar Top(Approx Weight:64-70Kg)
*Load Cell:Shear Beam Type-4pc(each corner 1 load cell)(total 4 load cell) (as shown in photo)
—————
#Option: 3-(48″×48″)
—————
*Capacity:1000Kg-200g or 2000Kg-200g
*Platter Size:1200-1200mm(48″ ×48″)
*Structure Detail: ISMC 125 2×4 Heavy “C” Channel Structure with 3mm MS Chekar Top(Approx Weight:100Kg)
*Load Cell:Shear Beam Type-4pc(each corner 1 load cell)(total 4 load cell) (as shown in photo)
—————
#Option: 4-(48″×72″)
—————
*Capacity:1000Kg-100g or 2000Kg-200g
*Platter Size:1200-1800mm(48″ ×72″)
*Structure Detail: ISMC 125 2″×4″ Heavy “C” Channel Structure with 5mm MS Chekar Top(Approx Weight:180-190Kg)
*Load Cell:Shear Beam Type-4pc(each corner 1 load cell)(total 4 load cell) (as shown in photo)
—————
#Option: 5-(48″×72″) (Heavy)
———————————————-
*Capacity:1000Kg-100g or 2000Kg-200g
*Platter Size:1200-1800mm(48″ ×72″)
*Structure Detail: ISMC 125 2.5″×5″ Heavy “C” Channel Structure with 5mm MS Chekar Top(Approx Weight:235-245Kg)
*Load Cell:Shear Beam Type-4pc(each corner 1 load cell)(total 4 load cell) (as shown in photo)
—————
#Option: 6-(60″×60″)
—————
*Capacity:1000Kg-100g or 2000Kg-200g or 3000Kg-500g
*Platter Size:1500-1500mm(60″ ×60″)
*Structure Detail: ISMC 125 2.5″×5″ Heavy “C” Channel Structure with 5mm MS Chekar Top(Approx Weight:200-210Kg)
*Load Cell:Shear Beam Type-4pc(each corner 1 load cell)(total 4 load cell) (as shown in photo)
—————-
#Option: 7-(3ft”×7ft) (Specially For Human Dead Body Weight
—————
*Capacity:500Kg
*Accuracy:100g
*Platter Size:2100-600mm
*Structure Detail: ISMC 125 2×4 Heavy “C” Channel Structure with 3mm MS Chekar Top(Approx Weight:115-120Kg)
*Load Cell:Shear Beam Type-4pc(each corner 1 load cell)(total 4 load cell)
————————————————————————-
#Option: 8-(6ft × 10ft)
(For Chakdo Rickshaws Weighing)
————————————————————————
*Capacity:3000Kg
*Accuracy:1Kg
*Platter Size:6FT × 10FT
*Structure Detail: ISMC 125 2.5″×5″ Heavy UBHI(“C” Channel Structure with 5mm MS Chekar Top(Approx Weight:550-580Kg)
*Load Cell:Shear Beam Type-4pc(each corner 1 load cell)(total 4 load cell) (as shown in photo)
————————————————————————
#Option: 7-(3ft”×7ft) (Specially For Human Dead Body Weight*
————————————————————————-
#Option: 9-(6ft × 4ft)
————————————————————————-
*Capacity:100Kg
*Accuracy:100g
*Platter Size:1500-1200mm(6ft×4ft)
*Structure Detail: ISMC 125 2×4 Heavy “C” Channel Structure with 3mm MS Chekar Top(Approx Weight:130-140Kg)
*Load Cell:Shear Beam Type-4pc(each corner 1 load cell)(total 4 load cell) (as shown in photo)
————————————————————————-
*Detail Of TI-753E High Precision Industrial Grade Digital Weighing Indicator Is As Follow:
#Features
*Weighing indicator TI-T753E is widely applied in electronic platform scale, electronic floor scale and so on alike static weighing system equipped with 1~4 350Ω load cell.
#Standard function
*Single window with 2 inch height highlight LED display, the real “big eyes”
*Peak value holding and average value function
*Auto/Manual accumulate
*Four grades battery indication, low power alarm and auto power off
*High-Low limits alarm function, with HIGH-OK-LOW indications
*Auto-Sleep function
*Preset tare
*Precision auto zoom 10-magnification function
*High precision A/D conversion with readability 1/30000
*AC/DC power supply with built-in rechargeable 6V/4AH battery
*RS232 interface with selectable baud rate
*With scoreboard communication interface,20mA current loop way
*Technical Parameter
*Precision grade-3 grades
*Max division-3000
*Input-signal range-19mV～19mV
*Conversion rate-more than 10 times/sec.
*Nonlinear≤0.0015%
*Load cell connection-able to connect with 1-4 350Ω load cell
*Division 1/2/5/10/20/50(selectable)
*Communication portRS232(serial), 20mA current loop signal to scoreboard connection
*Power supply-DC 5V; AC220V; 50、60Hz（-2%~+2%)
*Operation temperature-600
*Distance of transmission-≤200m
*Serial communication interface-RS232C Baud rate-600/1200/2400/4800/9600 optional
*Distance of transmission≤30m
